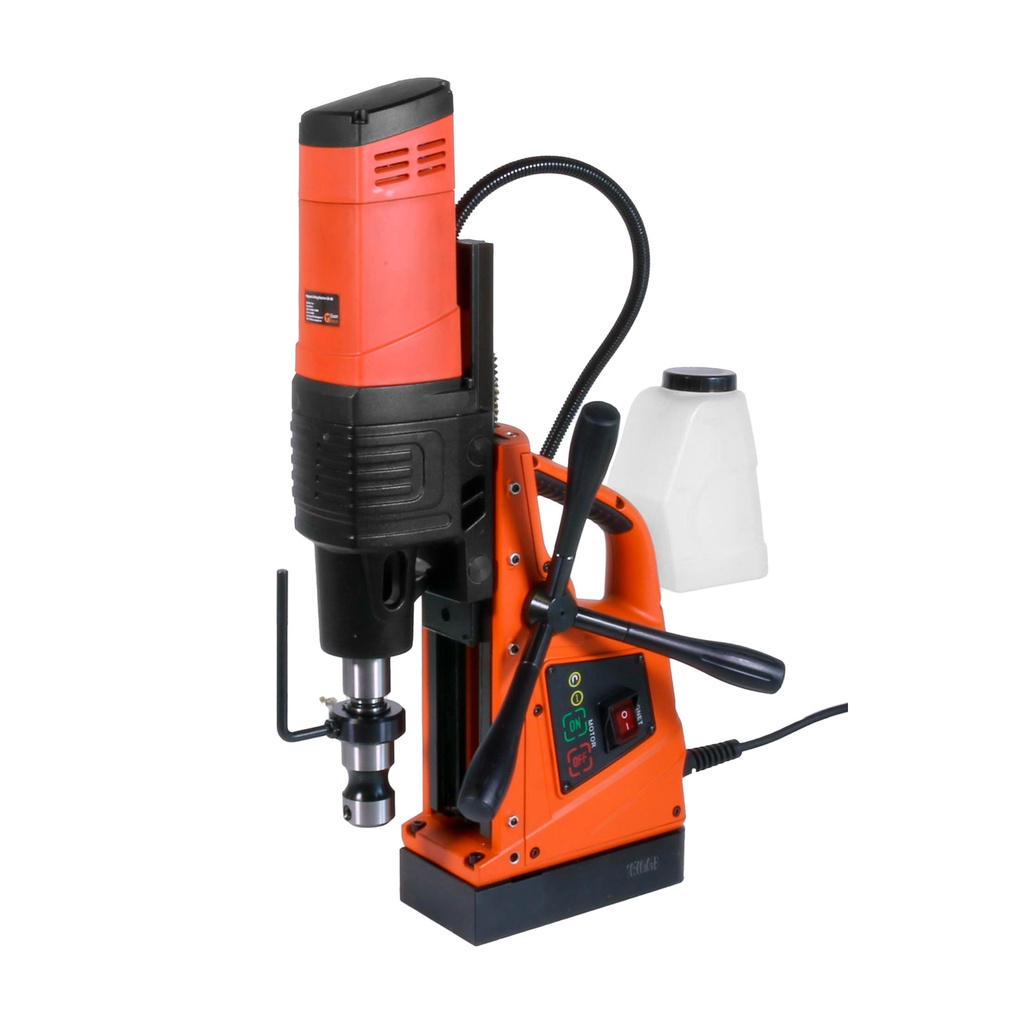

Magnetic Drilling Machine GX-60
Powerful two-speed magnetic drilling machine MK3 holder for all-round drilling.
Motor rated power: 1500 W
Load speed: 250/450 rpm
Tool holder: MK3/19,05 mm (3/4”) Weldon
Magnetic adhesion: 15000 N
The max. cutting dia. (HSS annular cutter): Ø 60 mm (2”)
The max. cutting dia. (TCT annular cutter) : Ø 50 mm (2 3/8”)
The max. cutting depth (annular cutter): 75 mm (3”)
The max. cutting dia. (twist drill): Ø 31,5 mm (1 1/4”)
The min cutter depth: 10 mm
Stroke: 170 mm
Motor can adjust the height to: 130 mm
The whole machine size: 375 mm x 230 mm x 450 mm
Magnetic base size: 210 mm x 100 mm x 45 mm
Total weight: 19 kg
Countersunk drilling: 10-50 mm
| Brand | GSON |
| Voltage (V) | 220V-240V |
